Workflow Analyzer in Studio

 Workflow Analyzer

Workflow Analyzer is a static code analyzer that ensures your project meets high quality and reliability standards. When triggered, it uses the configured rule set to check the project or workflow for inconsistencies without executing the project. It logs the errors found in the Error List panel, under the rule action.

Using the Workflow Analyzer, you can:

  • Edit, disable, and enable rules from studio.
  • Run validation or validation and analysis at file or project level.
  • Manage errors and warnings in the error list panel.
  • Build custom rules using the UiPath. Activities. API package.
  • Integrate workflow analysis with prebuilt and/or custom rules in CI/CD pipeline configurations.

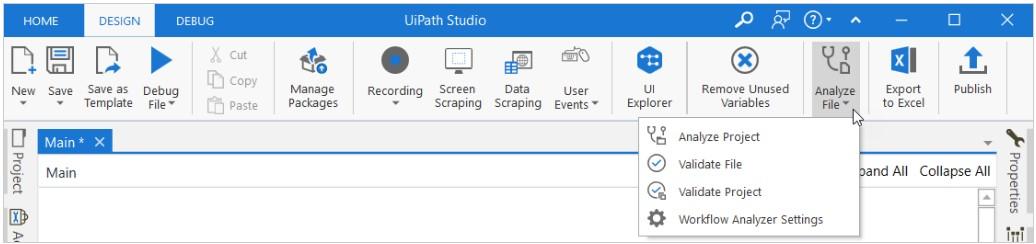

Graphical user interface, application, Word

Description automatically generated

Need of Workflow Analyzer

Workflow analysis plays a central part in project development. It is a tool for making sure your projects follow best practices, thus ensuring higher quality, reliability, and readability.

It is also used to enforce governance policies using file-based governance and UiPath Automation Ops.

Managing Rules

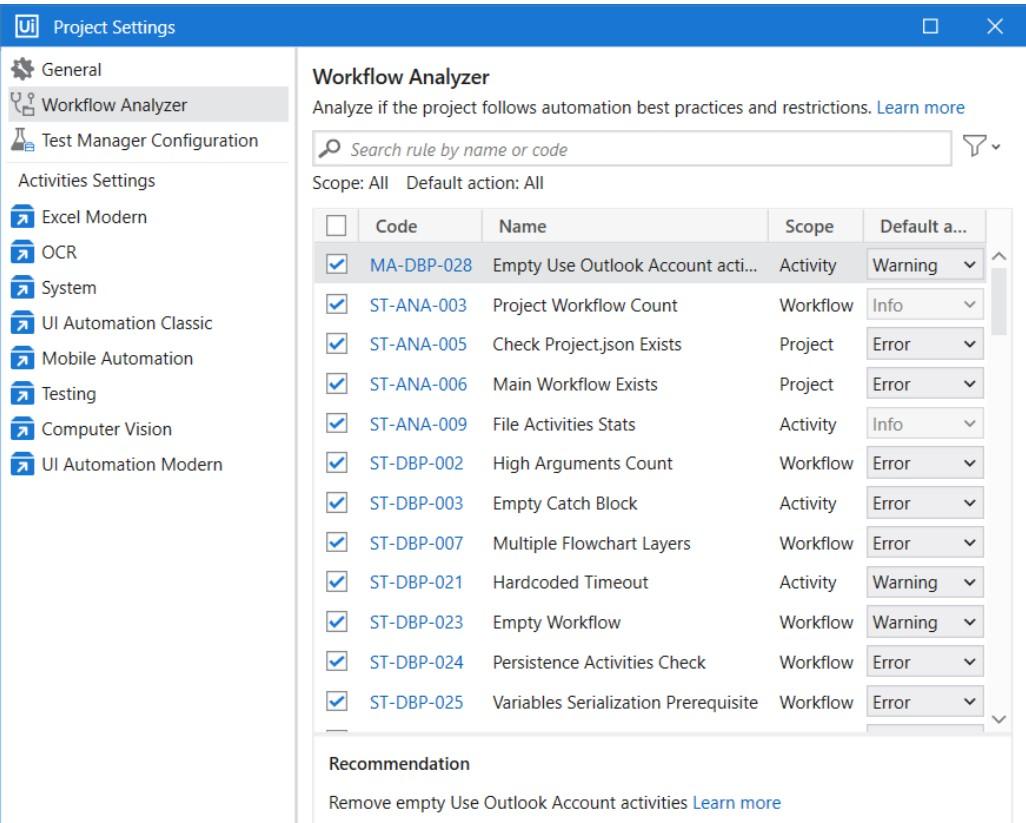

The project or file is analyzed based on a set of rules available in the Project Settings window:

  • In the Project panel, click the settings_icon icon, then select Workflow Analyzer.
  • In the ribbon, click the Analyze File button, then select Workflow Analyzer Settings from the dropdown.

By default, rules are arranged by code in the window, and enabled rules are displayed first.

Workflow Analyzer rules categories

In the analysis stage, your project is checked against a set of predefined rules applicable to studio.

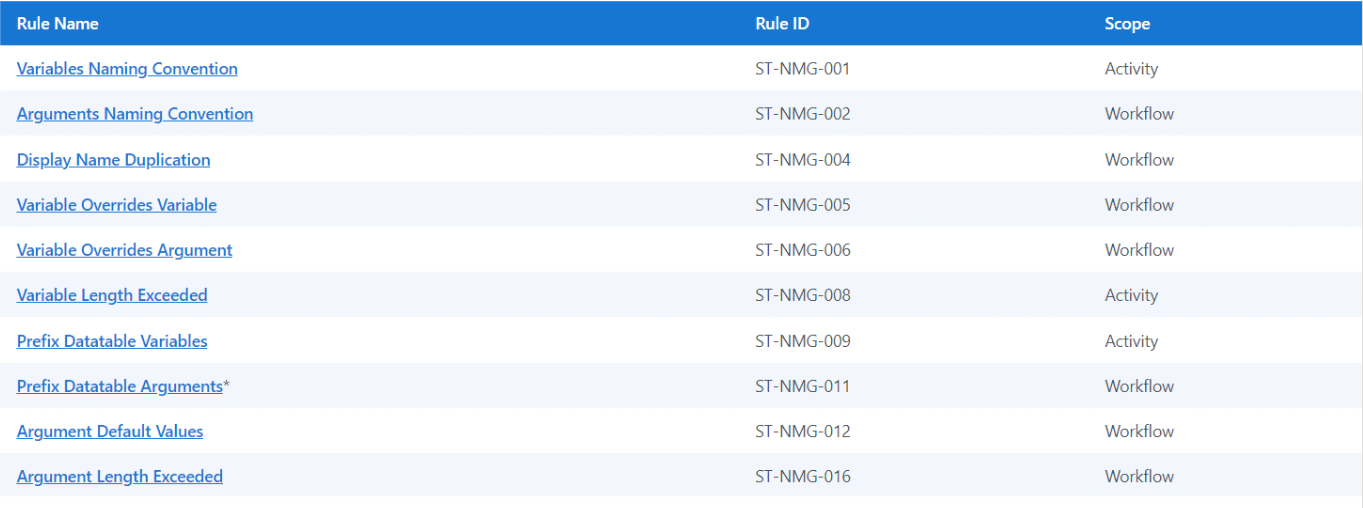

Rules Naming Convention

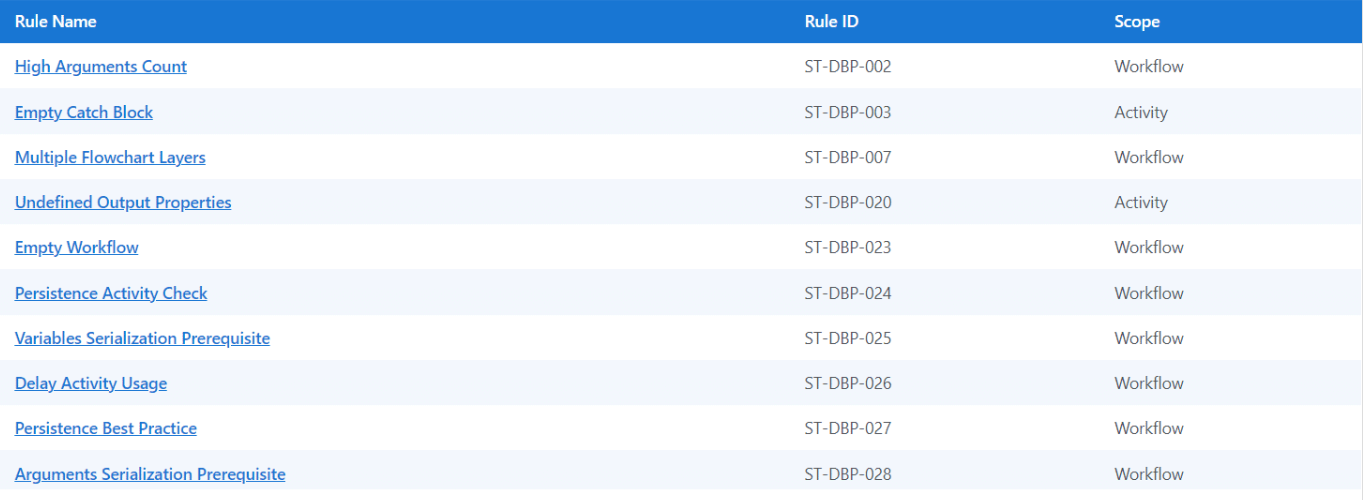

Design Best Practices

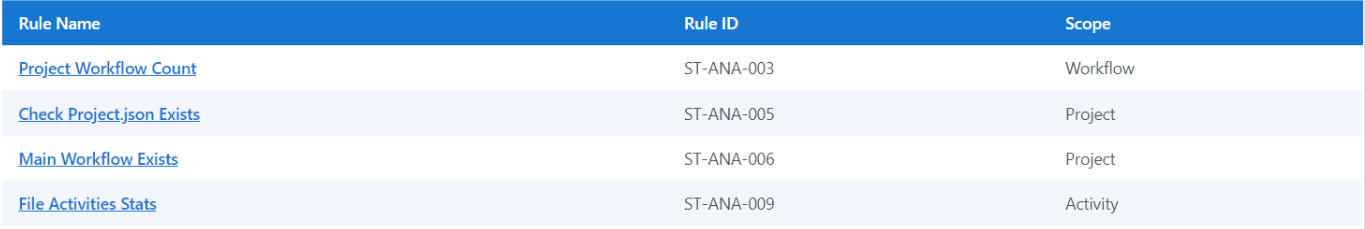

Project Anatomy Rules

Graphical user interface, application

Description automatically generated

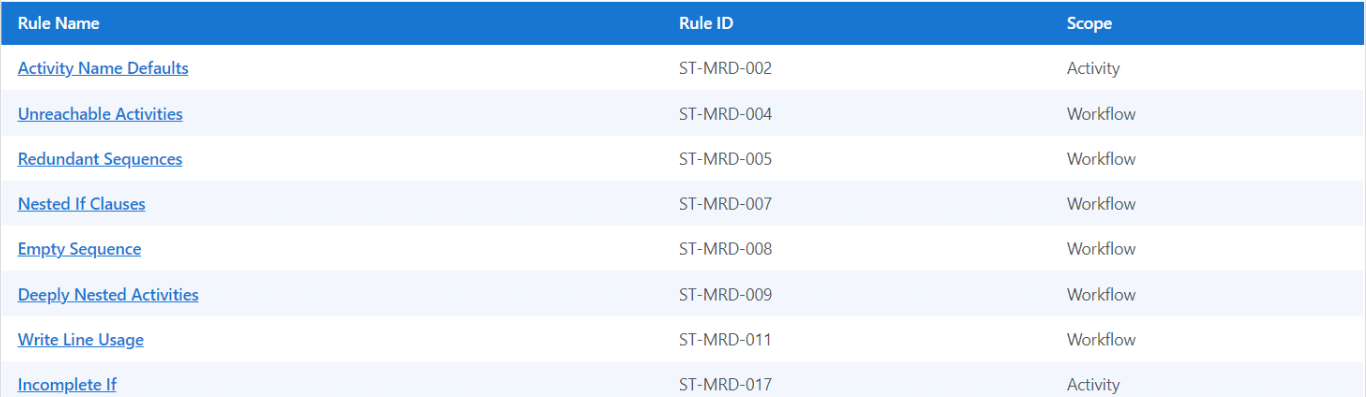

Maintainability and Readability

Graphical user interface

Description automatically generated with medium confidence

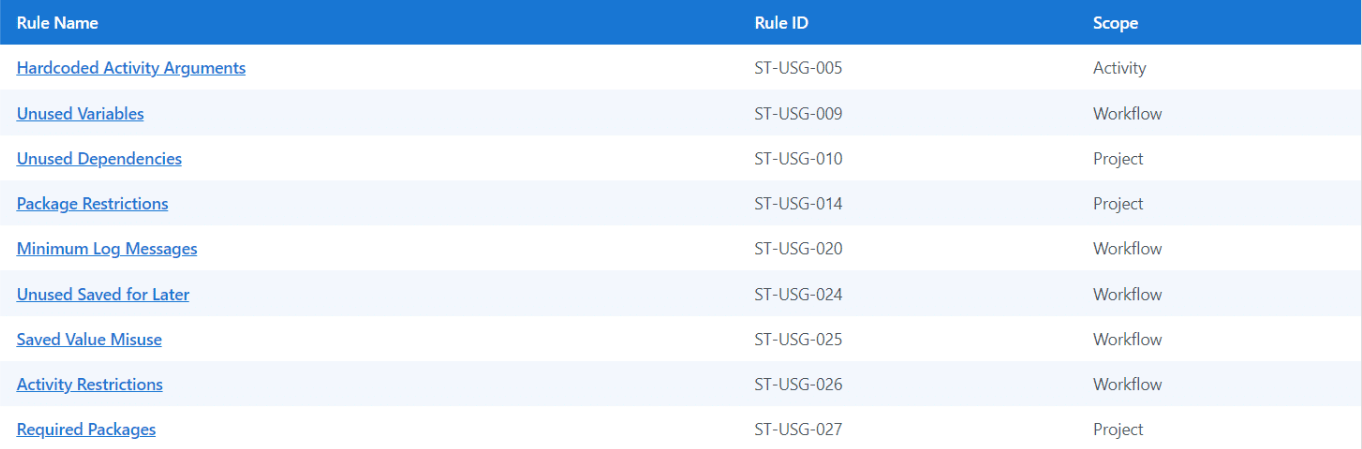

Usage Rules

Table

Description automatically generated with medium confidence

Performance and Reusability

Reliability Rule

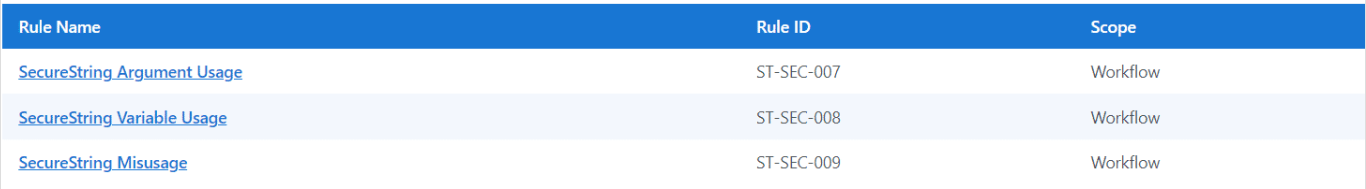

Security Rules

Graphical user interface, application

Description automatically generated

Exporting results

You can configure studio to export the results of each workflow analysis to project folder.

Go to studio backage view > settings > Design and enable the option export Analyzer

The file will contain following information about each enabled rule

  • Ruled
  • Ruled Name
  • Parameters
  • Severity
  • Errors Description
